The action types follow the label notation with this general format:
event_or_message trigger[condition]{condition_action}/{transition_action}
ad1
Friday, October 30, 2015
Default Action Types for a State
If you do not specify the action type explicitly for a statement, the chart treats that statement as an entry action.
In fact, Matlab uses a mechanism called Action Language Auto Correction that automatically correct some syntax in state transition diagrams
In fact, Matlab uses a mechanism called Action Language Auto Correction that automatically correct some syntax in state transition diagrams
Quote in LISP
The form 'foo is simply a faster way to type the special form
(quote foo)
which is to say, "do not evaluate the name foo and replace it with its value; I really mean the name "foo".
(quote foo)
which is to say, "do not evaluate the name foo and replace it with its value; I really mean the name "foo".
Enumerated Name in Spectre/SpectreMDL
Note that an enumerated name needs a single quote mark (') in front.
Thursday, October 29, 2015
Add Trigger Port to Stateflow Chart
In Stateflow Editor:
Chart -> Add Inputs & Outputs -> Event Input From Simulink

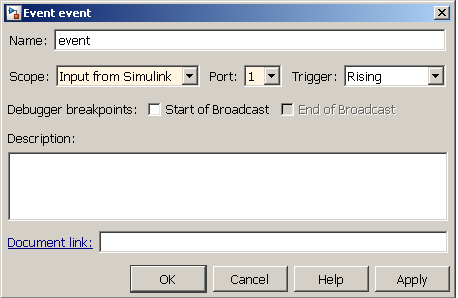

then in the popup dialog:
After adding the Trigger Port, the stateflow chart will look like
Chart -> Add Inputs & Outputs -> Event Input From Simulink
then in the popup dialog:
After adding the Trigger Port, the stateflow chart will look like
Wednesday, October 28, 2015
Exterior Derivatives of Differential Forms
Write out first-order form L as:
Thus, if we associate with L the vector R=(A,B,C), we have the remarkable fact that the coefficients of dL are just the components of the curl of R.
The exterior derivative extends the concept of the differential of a function to differential forms of higher degree. (function itself is differential form of 0 degree)
Add Newline in Wavescan Label:
Tuesday, October 27, 2015
Update pPar("param_name") parameter input
Suppose you have a cell, and want to change one of its device property from a definite value to a pPar value (that is, a parent parameter). After you change the property value, you have to add a dummy pin and then recreate the symbol view. That way, the pPar parameter is updated correctly.
Monday, October 26, 2015
Closed Differential Form & Exact Differential Form
If the coefficients of the differential form
has continuous first derivatives in a simply connected set R and satisfy the integrability conditions
then L is the total differential of a function u defined in R, and:
has continuous first derivatives in a simply connected set R and satisfy the integrability conditions
then L is the total differential of a function u defined in R, and:
Sunday, October 25, 2015
Check Monte Carlo Simulation Simulation Netlist in ADE (IC5141)
Get Monte Carlo simulation netlist in IC5141
The Monte Carlo portion of the netlist is shown below:
mc1 montecarlo numruns=100 seed=1 variations=mismatch donominal=yes \
scalarfile="../monteCarlo/mcdata" paramfile="../monteCarlo/mcparam" \
saveprocessparams=yes processparamfile="../monteCarlo/processParam" \
processscalarfile="../monteCarlo/processData" savefamilyplots=yes \
sampling=lhs {
dcOp dc write="spectre.dc" maxiters=150 maxsteps=10000 annotate=status
dcOpInfo info what=oppoint where=rawfile
modelParameter info what=models where=rawfile
element info what=inst where=rawfile
outputParameter info what=output where=rawfile
designParamVals info what=parameters where=rawfile
primitives info what=primitives where=rawfile
subckts info what=subckts where=rawfile
export noExprs=oceanEval("0")
}
Saturday, October 24, 2015
Branch Cut & Branch Points
In general, branch cuts are not unique, but are instead chosen by convention to give simple analytic properties (Kahan 1987).
An alternative to branch cuts for representing multivalued functions is the use of Riemann surfaces.
In addition to branch cuts, singularities known as branch points also exist. It should be noted, however, that the endpoints of branch cuts are not necessarily branch points.
An alternative to branch cuts for representing multivalued functions is the use of Riemann surfaces.
In addition to branch cuts, singularities known as branch points also exist. It should be noted, however, that the endpoints of branch cuts are not necessarily branch points.
Friday, October 23, 2015
Mismatch Simulation
When simulating with mismatch, spectre will generate a random value for each of the varied global parameters for each subckt instance.
There is a commonly mistaken belief that you must use inline subckts for mismatch simulation. In fact, the subckt does not need to be inline, that is merely to make back-annotation of operating point data simpler because the result database does not contain an additional level of hierarchy for the inline device.
Pick a Particular Iteration from Monte Carlo Simulation Result
value(VT("/myOut") 'iteration <iterationNumberHere>)
pv
pv( t_name t_param)
- Returns the value for the specified component parameter.
- You can use the outputParams command to get the list of parameters for a particular component.
Specifying Parameter Distributions in Spectre -- Use Statistics Blocks
Statistics block can contain:
Process blocks:
Mismatch blocks:
Correlation statements:
Two types of correlation statements that you can use:
- One or more process blocks;
- One or more mismatch blocks;
- One or more correlation statements;
- A truncate statement (for generating truncated distributions);
Process blocks:
- sampled once per Monte Carlo run
Mismatch blocks:
- sampled once per subcircuit instance
Correlation statements:
Two types of correlation statements that you can use:
- Process parameter correlation statements
- Instance or mismatch correlation statements (matched devices)
Thursday, October 22, 2015
Sample Monte Carlo Analysis
mc2 montecarlo donominal=no variations=mismatch seed=1234 numruns=200 {
dcop2 dc
tran2 tran start=0 stop=1u
export slewrate=oceanEval("slewRate(v(\"vout\"),10n,t,30n,t,10,90 )"
}
Notes:
Notes:
- Monte Carlo analysis statement applies only mismatch variations (variations=mismatch);
- It does not perform a nominal run (donomial=no).
